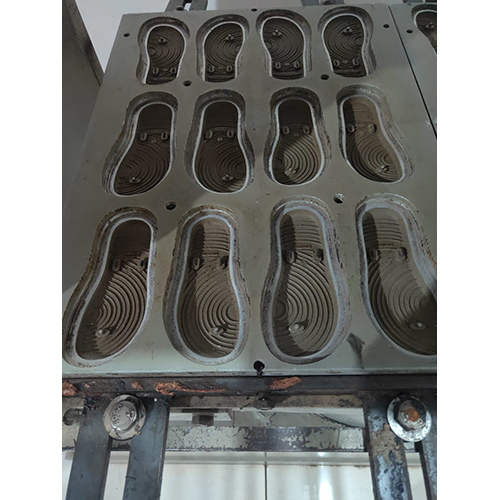

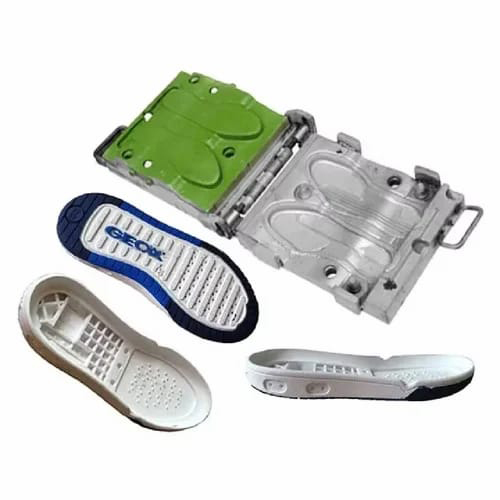

Footwear Moulds

Get a Price/Quote

Product Details:

Lubricating System Automated
Drive Direct Drive
Control System PLC Controlled
Voltage 230-440 V
Model No FM-2024
Machine Type Injection Moulding Mould
Frequency 50/60 Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Footwear Moulds Price And Quantity

Minimum Order Quantity 1 Unit

Material Grade High Grade Aluminum/Steel
Interchangeable Inserts Available
Cleaning & Maintenance Easy Maintenance Design
Finishing Mirror Polish
No of Cavities Single & Multi-cavity
Design Software Used AutoCAD, SolidWorks
Lead Time 2-4 Weeks
Compatibility Compatible with most standard injection moulding machines
Mould Life Greater than 1,000,000 shots
Working Speed Variable

Footwear Moulds Product Specifications

Production Capacity Up to 120 Pairs/Day
Features Corrosion Resistant, Durable, High Precision
Surface Treatment Polished
Motor Power 5 HP
Power Source Electric
Noise Level Low (below 70 dB)
Operating Temperature Up to 180C
Frame Type Standard/Custom
Plastic Processed PVC, TPR, PU, EVA
Accuracy 0.05 mm
Cooling System Water Cooled
Operating Type Manual and Automatic
Power Rating 5 kW
Usage & Applications For manufacturing soles, slippers, and shoe uppers
Color Silver / Gray
Frequency 50/60 Hz
Machine Type Injection Moulding Mould
Model No FM-2024
Weight (kg) 12-20 kg
Product Type Footwear Moulds
Dimension (L*W*H) Customized as per order
Power 5 kW
Control System PLC Controlled
Voltage 230-440 V
Pressure Adjustable, up to 200 bar
Technology CNC Machined
Lubricating System Automated
Drive Direct Drive

Material Grade High Grade Aluminum/Steel
Interchangeable Inserts Available
Cleaning & Maintenance Easy Maintenance Design
Finishing Mirror Polish
No of Cavities Single & Multi-cavity
Design Software Used AutoCAD, SolidWorks
Lead Time 2-4 Weeks
Compatibility Compatible with most standard injection moulding machines
Mould Life Greater than 1,000,000 shots
Working Speed Variable

Footwear Moulds Trade Information

Delivery Time 5-10 Days

Product Description

Experience sizzling precision with our Classic Footwear Moulds, a true masterpiece crafted from high grade aluminum and steel. With a mirror-polish finish and interchangeable inserts, these moulds guarantee durable, corrosion-resistant performance. Adjust working pressure up to 200 bar and enjoy a variable speed for tailored production. Suited for both manual and automatic operations, the FM-2024 is compatible with most standard injection moulding machines. Thanks to state-of-the-art CNC machining and terrific reliability, every pair produced is a testament to quality-truly an ephemeral sale opportunity you shouldn't miss!

Outstanding Features & Versatile Applications

Our Footwear Moulds offer extra features like mirror-polished surfaces, interchangeable inserts, and PLC-controlled accuracy up to 0.05 mm. The easy-maintenance design and automated lubrication system ensure seamless, long-term operation. These moulds are ideal for manufacturing soles, slippers, and shoe uppers, making them indispensable for footwear factories, shoe design studios, and manufacturing hubs seeking high productivity and customization.

Certifications, Swift Delivery & Flexible Payment

Certified for safety and performance, each mould undergoes rigorous quality checks. With a lead time of just 2-4 weeks, we use trusted transport services and efficient freight networks to ensure timely delivery across India and beyond. Payment outlay is flexible to suit varied needs, supporting multiple secure options and hassle-free transactions, making working with us simple, reliable, and cost-effective.

FAQ's of Footwear Moulds:

Q: How does the variable working speed benefit the footwear moulding process?

A: The adjustable speed feature allows for greater control over production, enabling precise customization based on the type of footwear being manufactured, improving efficiency and product quality.

Q: What materials are compatible with these footwear moulds?

A: The FM-2024 model is designed to process PVC, TPR, PU, and EVA, making it versatile for soles, slippers, and shoe uppers in different material compositions.

Q: Where can these footwear moulds be used?

A: These moulds are perfect for use in footwear factories, small-scale workshops, and industrial design studios that require high precision and multiple cavity configurations.

Q: What is the cleaning and maintenance process for these moulds?

A: Thanks to their easy-maintenance design and automated lubricating system, cleaning and upkeep are straightforward, minimizing downtime and ensuring long-term performance.

Q: When will I receive my order after purchase?

A: With an average lead time of 2-4 weeks, your mould will be dispatched promptly using efficient freight and transport services.

Q: What advantages does the interchangeable insert feature offer?

A: Interchangeable inserts provide flexibility, allowing quick changes for different designs or product dimensions without replacing the entire mould, saving cost and time.
