Moulding Machine

• Accuracy
• 0.1 mm

• Color
• Blue & White

• Connectivity Options
• Standard I/O Ports

• Control System
• Other, PLC Controlled

• Cooling System
• Water Cooling

• Dimension (L*W*H)
• 1200 x 680 x 1500 mm

• Drive
• Hydraulic Drive

• Features
• Energy efficient, sturdy construction, quick mould changeover

• Frame Type
• Heavy Duty Welded Frame

• Frequency
• 50 Hz

• Lubricating System
• Automatic Lubrication

• Machine Type
• Hydraulic Press Insole Moulding

• Model No
• IM-400

• Motor Power
• 2 HP

• Noise Level
• 70 dB

• Operating Temperature
• 5C - 45C

• Operating Type
• Other, Semi-Automatic

• Plastic Processed
• EVA, PU

• Power
• 3.2 kW

• Power Rating
• 3.2 kW

• Power Source
• Other, Electric

• Pressure
• 3-6 Bar

• Product Type
• Other, Insole Moulding Machine

• Production Capacity
• 150-200 pairs/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Hydraulic Moulding

• Usage & Applications
• Moulding and forming insoles for footwear manufacturing

• Voltage
• 220-240V

• Weight (kg)
• 420 kg

• Accuracy
• 0.05 mm

• Color
• Silver / Gray

• Control System
• Other, PLC Controlled

• Cooling System
• Water Cooled

• Dimension (L*W*H)
• Customized as per order

• Drive
• Direct Drive

• Features
• Corrosion Resistant, Durable, High Precision

• Frame Type
• Standard/Custom

• Frequency
• 50/60 Hz

• Lubricating System
• Automated

• Machine Type
• Injection Moulding Mould

• Model No
• FM-2024

• Motor Power
• 5 HP

• Noise Level
• Low (below 70 dB)

• Operating Temperature
• Up to 180C

• Operating Type
• Other, Manual and Automatic

• Plastic Processed
• PVC, TPR, PU, EVA

• Power
• 5 kW

• Power Rating
• 5 kW

• Power Source
• Other, Electric

• Pressure
• Adjustable, up to 200 bar

• Product Type
• Other, Footwear Moulds

• Production Capacity
• Up to 120 Pairs/Day

• Surface Treatment
• Other, Polished

• Technology
• Other, CNC Machined

• Usage & Applications
• For manufacturing soles, slippers, and shoe uppers

• Voltage
• 230-440 V

• Weight (kg)
• 12-20 kg

• Accuracy
• High Precision Moulding

• Color
• Blue & Silver

• Connectivity Options
• No external connectivity

• Control System
• Other, PLC Control

• Cooling System
• Water Cooling

• Dimension (L*W*H)
• 1100 x 750 x 1450 mm

• Drive
• Electric Motor Driven

• Features
• Safety Interlock, Digital Timer, Overload Protection

• Frame Type
• Rigid Steel Construction

• Frequency
• 50 Hz

• Lubricating System
• Centralized Lubrication

• Machine Type

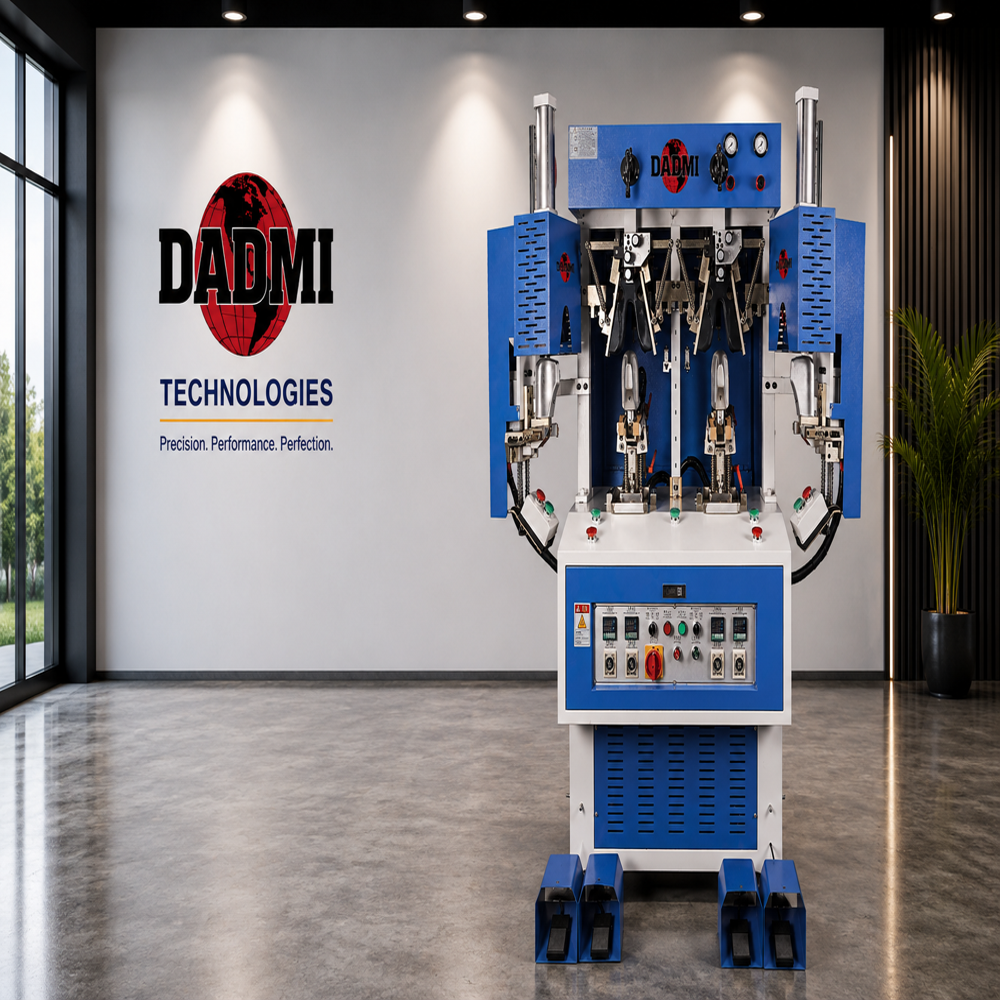

• Toe Moulding

• Model No
• TM-101

• Motor Power
• 2 HP

• Noise Level
• Low

• Operating Temperature
• Room Temperature to 80C

• Operating Type
• Other, Semi-Automatic

• Plastic Processed
• Thermoplastic Sheets

• Power
• 2.5 kW

• Power Rating
• 2.5 kW

• Power Source
• Other, Electric

• Pressure
• 5-7 Bar

• Product Type
• Other, Toe Moulding Machine

• Production Capacity
• 180-200 pairs/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Hydraulic/Pneumatic Combination

• Usage & Applications
• Shoe Toe Moulding

• Voltage
• 220 V / 380 V

• Weight (kg)
• 430 kg

• Accuracy
• 0.02 mm

• Color
• Light Grey / Blue

• Connectivity Options
• Standard electrical plug-in

• Control System
• Other, Microprocessor based

• Cooling System
• Air cooled

• Dimension (L*W*H)
• Approx. 900 x 900 x 1400 mm (varies per model)

• Drive
• Hydraulic

• Features
• Energy efficient, easy swing motion, overload protection, precise setting, low maintenance

• Frame Type
• Heavy-duty single frame

• Frequency
• 50/60 Hz

• Lubricating System
• Automatic and centralized

• Machine Type
• Clicker Press

• Model No
• SE-Series

• Motor Power
• 1.1/2.2 kW

• Noise Level
• < 75 dB

• Operating Temperature
• 5C - 40C

• Operating Type
• Other, Semi-Automatic

• Plastic Processed
• Suitable for cutting thermoplastic sheets

• Power
• 1.1 kW to 2.2 kW (depending on model)

• Power Rating
• 1.1-2.2 kW

• Power Source
• Hydraulic

• Pressure
• 10 to 25 Ton (variable, based on model)

• Product Type
• Other, Swing Arm Clicker Press Machine

• Production Capacity
• Up to 1200 strokes/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Hydraulic Swing Arm Cutting

• Usage & Applications
• Cutting leather, rubber, fabrics, plastics, cardboards, soft and semi-rigid materials

• Voltage
• 220V/380V/415V, 50/60Hz

• Weight (kg)
• Approx. 600-650 kg

• Accuracy
• 99 %

• Color
• Sky Blue/White

• Connectivity Options
• Standard I/O, Optional Ethernet

• Control System
• Fully Automatic, PLC

• Cooling System
• Air + Water Cooling

• Country Of Origin
• CHINA

• Dimension (L*W*H)
• 320 mm Millimeter (mm)

• Drive
• Hydraulic

• Features
• Energy Efficient, Easy Operation, High Productivity

• Frame Type
• Rigid Welded Frame

• Frequency
• 50 Hertz (Hz) Hertz (HZ)

• Lubricating System
• Automatic Lubrication

• Machine Type

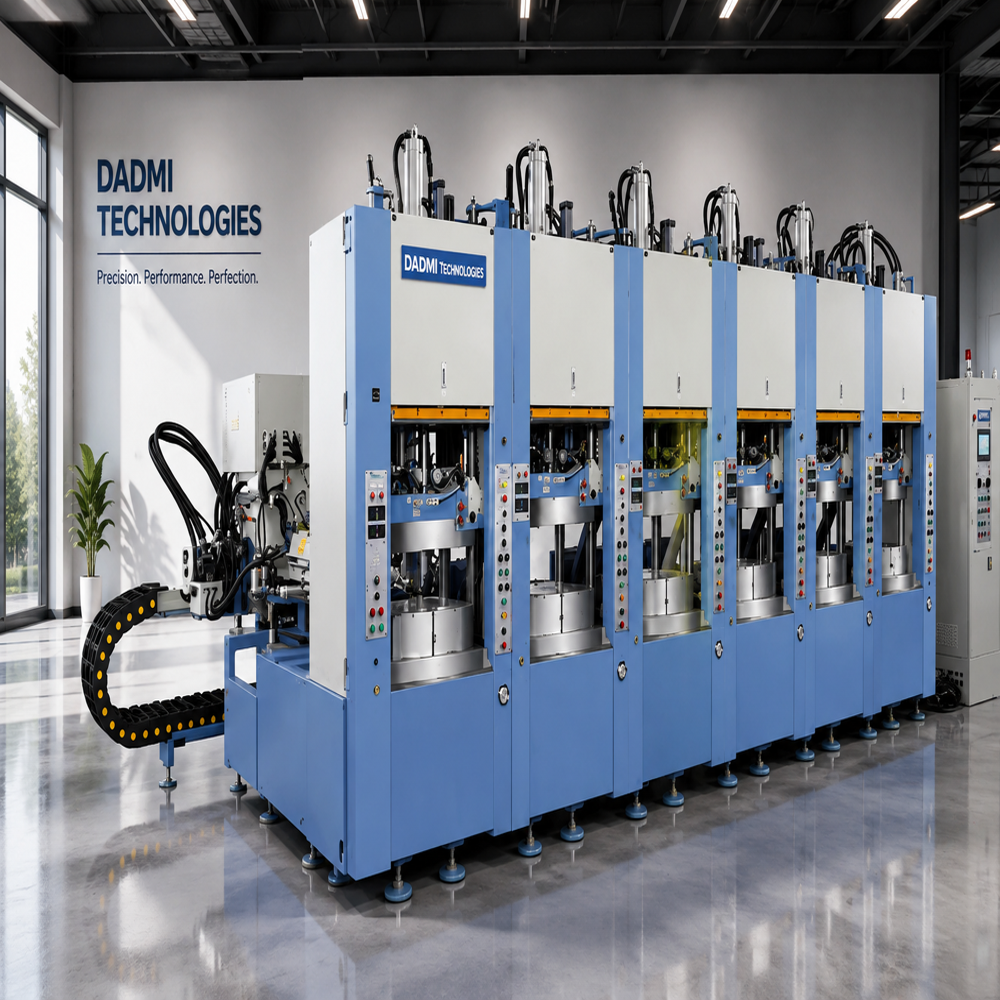

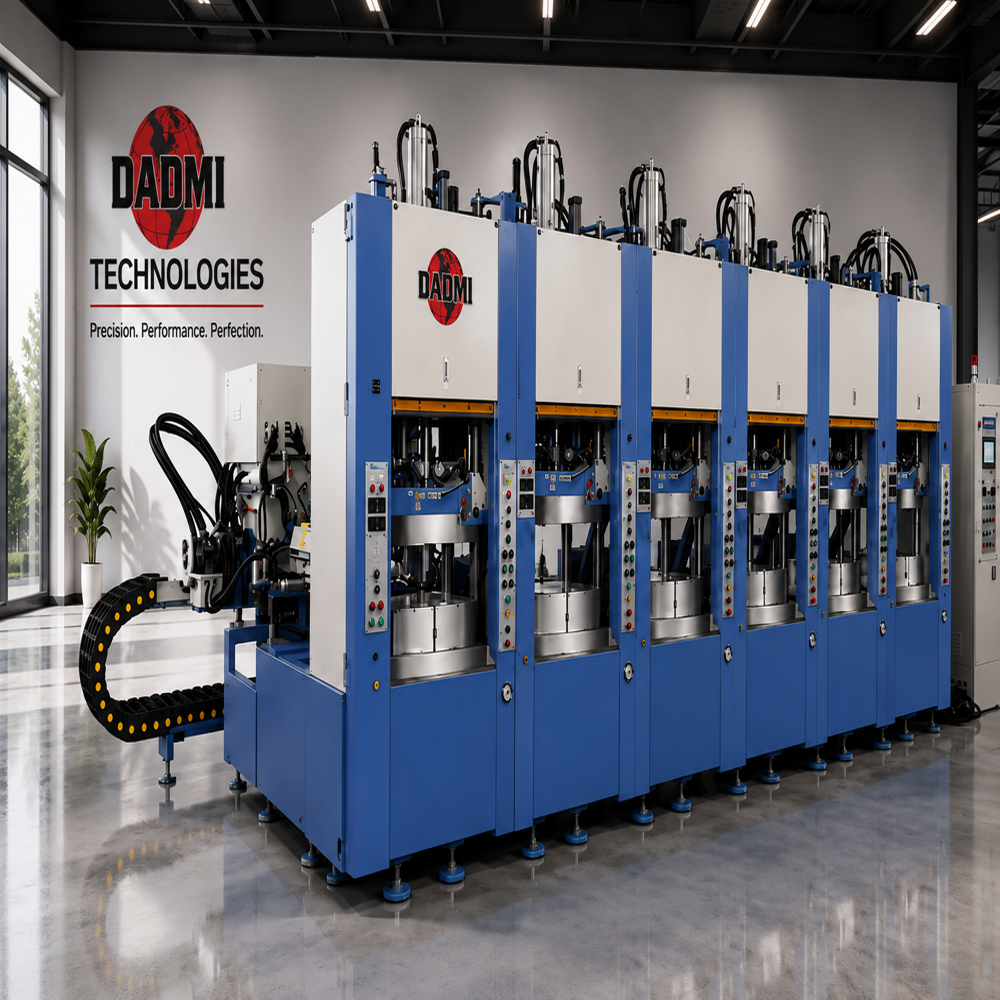

• EVA Injection Molding Machine

• Model No
• EVA220

• Motor Power
• 15 kW Kilowatt (kW)

• Noise Level
• <75 dB db

• Operating Temperature
• Room 20-40 C Celsius (oC)

• Operating Type
• Automatic

• Plastic Processed
• EVA (Ethylene Vinyl Acetate)

• Power
• 22-35 Horsepower (HP) Horsepower (HP)

• Power Rating
• 15 kW

• Power Source
• Electricity

• Pressure
• 120 130 kg/cm kgf/cm2

• Product Type
• Other

• Production Capacity
• 80-120 Pairs/Hour Pcs/hr

• Surface Treatment
• Other

• Technology
• Other

• Usage & Applications
• Shoe Sole, Slipper, Sandal Manufacturing

• Voltage
• 415 Volt (V) Volt (v)

• Warranty
• 6

• Weight (kg)
• 8-18 Ton Tonne

• WorkingSpeed
• 80-120 Pairs/Hour
