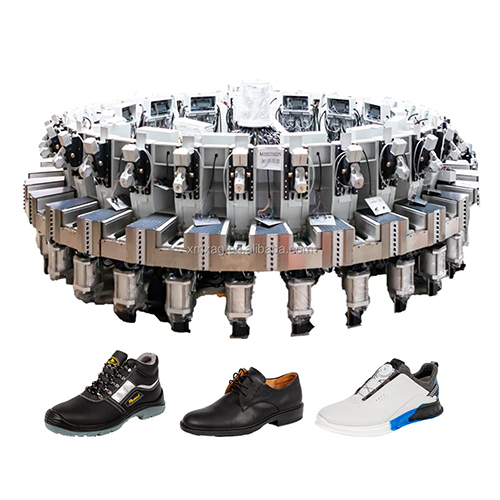

PU Injection Moulding DIP Machine

Get a Price/Quote

Product Details:

Control System PLC Controlled
Frame Type Heavy Duty Steel Frame
Drive Hydraulic
Accuracy High Precision
Connectivity Options Ethernet, USB
Power Rating 15 kW
Noise Level < 75 dB
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

PU Injection Moulding DIP Machine Price And Quantity

Minimum Order Quantity 1 Unit

Material Feeding Type Automatic / Manual
Mixing Head Type High Pressure Mixing
Display Type Touchscreen HMI
Injection Volume 250-1200 g
Injection Pressure 140-180 Bar
Emergency Stop Available
Min. Mould Thickness 250 mm
Heating Type Electric Heating
Cycle Time 18-25 Sec (Adjustable)
Hydraulic Oil Capacity 180 Liters
Mould Clamping Force 120 Tons
Max. Mould Opening Stroke 400 mm

PU Injection Moulding DIP Machine Product Specifications

Weight (kg) 1500 kg
Control System PLC Controlled
Product Type PU Injection Moulding DIP Machine
Frame Type Heavy Duty Steel Frame
Connectivity Options Ethernet, USB
Accuracy High Precision
Drive Hydraulic
Dimension (L*W*H) 3200 x 1800 x 2200 mm
Usage & Applications Shoe Sole Manufacturing, Automotive, Footwear Industry
Power Rating 15 kW
Noise Level < 75 dB
Lubricating System Centralized
Model No PU-DIP-3200
Cooling System Water Cooled
Power 8-15 kW
Power Source Electric
Plastic Processed Polyurethane
Color Blue & White
Operating Temperature 20-35C
Technology PU (Polyurethane) Injection Moulding
Production Capacity 120-150 pairs/hour
Features Energy Efficient, User Friendly Interface, Robust Frame, Efficient Material Mixing
Pressure 0.5-0.8 MPa
Voltage 380V/415V
Motor Power 7.5 kW
Machine Type Hydraulic PU Injection
Operating Type Automatic
Surface Treatment Paint Coated
Frequency 50/60 Hz

Material Feeding Type Automatic / Manual
Mixing Head Type High Pressure Mixing
Display Type Touchscreen HMI
Injection Volume 250-1200 g
Injection Pressure 140-180 Bar
Emergency Stop Available
Min. Mould Thickness 250 mm
Heating Type Electric Heating
Cycle Time 18-25 Sec (Adjustable)
Hydraulic Oil Capacity 180 Liters
Mould Clamping Force 120 Tons
Max. Mould Opening Stroke 400 mm

PU Injection Moulding DIP Machine Trade Information

Delivery Time 5-10 Days

Product Description

Experience laureate engineering with our PU Injection Moulding DIP Machine-an outstanding solution for shoe sole manufacturing and the footwear industry. This kingly hot-selling model comes with a 120-ton mould clamping force and advanced high-pressure mixing head, ensuring high precision and energy efficiency. With a robust heavy-duty steel frame and user-friendly touchscreen HMI, this machine is built for excellence and durability. Add to Cart now to elevate your production, enjoy efficient material mixing, and achieve remarkable output. Pick yours today and join India's leading manufacturers and exporters!

Directions, Features & Usage Type

The PU Injection Moulding DIP Machine is designed for automated or manual material feeding, making it suitable for various footwear and automotive applications. Featuring a high precision PLC control system, this machine offers easy operation, efficient material mixing, and robust safety mechanisms such as an emergency stop. Its user-centric interface ensures straightforward control, while the heavy-duty frame promises reliability under intensive use. Ideal for manufacturers seeking streamlined, high-output operations with repeatable and accurate results.

Order Fulfilment & Domestic Availability

Our PU Injection Moulding DIP Machines are supply-ready for the Indian market, with stock maintained for swift order completion through trusted FOB ports. We offer flexible payment terms to facilitate smooth transactions, ensuring buyers experience a hassle-free procurement process. Orders are processed rapidly, with our dedicated team overseeing every step from initial inquiry to delivery. Rely on our commitment to prompt dispatch and seamless after-sales support for a superior purchasing experience.

FAQ's of PU Injection Moulding DIP Machine:

Q: How does the PU Injection Moulding DIP Machine benefit footwear manufacturers?

A: This machine offers outstanding productivity, precise moulding, high-quality output, and energy efficiency, streamlining shoe sole production while maintaining consistent standards, making it a preferred choice among manufacturers.

Q: What features make this model user-friendly and safe to operate?

A: The model includes a touchscreen HMI for intuitive use, emergency stop function for safety, PLC-controlled operations, and centralized lubrication, ensuring both ease and security during operation.

Q: Where can this PU Injection Moulding DIP Machine be used?

A: It's suitable for shoe sole manufacturing, automotive components, and diverse footwear industry applications where high-precision polyurethane moulding is required.

Q: What is the process for ordering and delivery within India?

A: Customers can place orders directly; our supply chain ensures order completion, stock availability, and quick delivery via FOB ports, with support at every stage for a smooth transaction.

Q: How does the automatic feeding and high-pressure mixing technology improve operations?

A: Automatic feeding and high-pressure mixing guarantee a consistent and efficient blend of materials, reducing manual intervention, improving product quality, and enhancing production speed.
