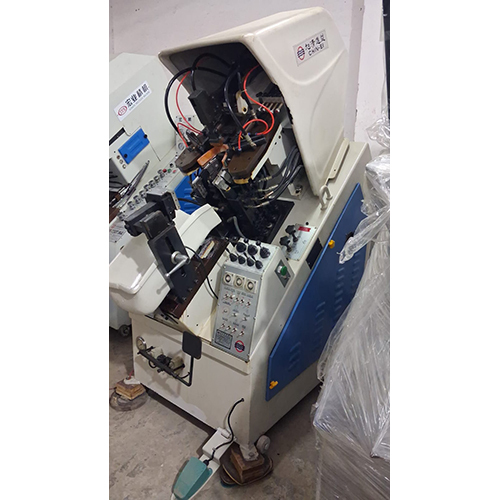

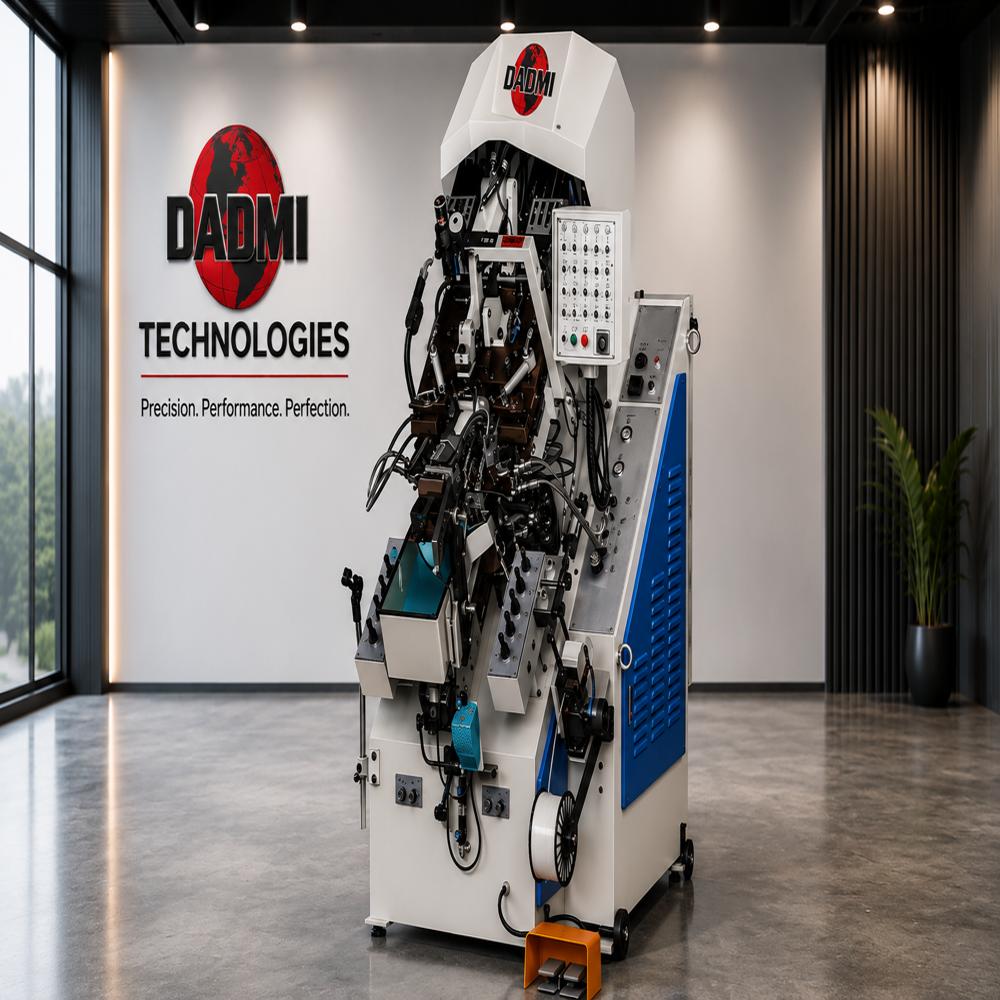

Toe Lasting Machine (refurbished)
500000.0 INR/Unit
Product Details:
- Product Type Toe Lasting Machine (Refurbished)
- Material High-grade steel and industrial components
- Capacity 180-220 pairs/hour
- Computerized Semi-Computerized
- Automatic Grade Automatic
- Control System PLC control panel
- Processing Type Mechanical and pneumatic
- Click to view more
X
Toe Lasting Machine (refurbished) Price And Quantity
- 1 Unit
- 500000.0 INR/Unit
- 14-18 sec per pair
- 0.6 MPa (6 bar)
- Men's, Women's, Childrens' footwear
- Emergency stop, overload protection
- All pneumatic cylinders, hydraulic pump and main motor replaced/refurbished
- 3-12 UK (customizable)
- <75 dB during operation
- Centralized manual lubrication
- Hydraulic toe wiper, rotary arm clamping
Toe Lasting Machine (refurbished) Product Specifications
- PLC control panel
- Semi-Computerized
- Industrial matte green (may vary as per refurbishment)
- 380V/220V, 3 Phase, 50/60 Hz
- Automatic
- Mechanical and pneumatic
- 180-220 pairs/hour
- 2.2 kW
- Toe Lasting Machine (Refurbished)
- 1600 x 900 x 1800 mm
- High-grade steel and industrial components
- 950 kg
- 14-18 sec per pair
- 0.6 MPa (6 bar)
- Men's, Women's, Childrens' footwear
- Emergency stop, overload protection
- All pneumatic cylinders, hydraulic pump and main motor replaced/refurbished
- 3-12 UK (customizable)
- <75 dB during operation
- Centralized manual lubrication
- Hydraulic toe wiper, rotary arm clamping
Toe Lasting Machine (refurbished) Trade Information
- 5-10 Days
Product Description
A toe lasting machine is a specialized, often hydraulic, industrial machine used in shoe manufacturing to stretch, shape, and cement the front upper part of a shoe tightly around a mold (the last). It automates the precise task of creating a wrinkle-free toe, using multiple pincers to hold the material and wipers to fold and bond it.Key Features and Functions:
- Purpose: Shapes the shoe upper to the last, ensuring the toe area is perfectly formed, tight, and consistent for both leather and synthetic materials.
- Automatic Cementing: Many modern models feature automatic adhesive application, eliminating the need for manual gluing before the lasting process.
- Pincers and Wipers: Uses multiple pincers to grip the material and specialized, often tool-less, wipers to wipe the upper over the insole for a clean finish.
- Pressure Adjustment: Features adjustable, sometimes two-stage, hydraulic pressure to handle different materials and ensure proper bonding.
- Types: Available as manual machines for small-scale operations or automatic hydraulic machines for high-speed, high-volume production, some of which are computer-controlled
Efficient Footwear Lasting for Modern Manufacturers
Engineered for speed and precision, this refurbished Toe Lasting Machine streamlines your footwear production. With automatic and semi-computerized controls, it is suitable for diverse shoe types. High-grade steel construction and advanced safety features ensure durability and secure operation, providing peace of mind even during high-output sessions.
Refurbished for Reliability and Savings
Each unit is meticulously refurbished-replacing essential components like pneumatic cylinders, hydraulic pumps, and the main motor-to guarantee performance comparable to new machines. Thorough quality checks ensure that you gain the dependability and output you require at a fraction of the cost of brand-new equipment, making it an excellent choice for manufacturers looking to optimize investment.
FAQ's of Toe Lasting Machine (refurbished):
Q: How does the refurbished Toe Lasting Machine ensure safety during operation?
A: The machine is equipped with essential safety features such as an emergency stop button and overload protection, allowing immediate halting and protection of both operators and equipment during unforeseen situations.Q: What shoe types and sizes are compatible with this machine?
A: This Toe Lasting Machine accommodates men's, women's, and children's footwear, with a shoe size range from 3 to 12 UK. The size range can be customized according to your specific manufacturing requirements.Q: What is the typical process and cycle time for lasting a shoe pair?
A: The machine utilizes a hydraulic toe wiper and rotary arm clamping to last each pair within a cycle time of 14-18 seconds, enabling efficient processing and high hourly output.Q: Where can this machine be used within a footwear manufacturing facility?
A: With a relatively compact footprint (1600 x 900 x 1800 mm) and a weight of 950 kg, the machine is ideal for integration into production lines in factories of varying sizes, whether you are a large exporter or a local supplier.Q: What are the main benefits of choosing this refurbished model over a new machine?
A: Opting for this refurbished machine offers significant cost savings while delivering performance and reliability. All pneumatic cylinders, the hydraulic pump, and the main motor have been replaced or refurbished to meet high standards, ensuring longevity and optimal operation.Q: How is lubrication managed, and how often does it need attention?
A: The machine includes a centralized manual lubrication system, making it convenient for operators to maintain and ensuring consistent performance. Lubrication schedules can be set according to usage frequency, and regular checks are recommended to prevent wear.Tell us about your requirement
